Your Current Location ：Home ? Product ? Electric magnetic iron remover  ? RCDF series oil-cooled self-discharging electromagnetic iron remover

Product

RCDF series oil-cooled self-discharging electromagnetic iron remover

RCDF series oil-cooled self-discharging electromagnetic iron remover

Details ：

RCDF series oil-cooled self-discharging electromagnetic iron remover brief description:
RCDF series oil-cooled self-discharging electromagnetic iron remover is in THE RCDE series oil-cooled suspended electromagnetic iron remover on the basis of increasing the drive motor, drum, with a scraper of iron removal belt composed of iron discharge mechanism. It has the advantages of large magnetic force, fast heat dissipation, dustproof, rain proof, corrosion resistance, continuous work and low maintenance cost. Since its advent, it has won the praise of the majority of users with the characteristics of convenient operation, low failure rate and small maintenance.
The meaning of electromagnetic iron remover model:

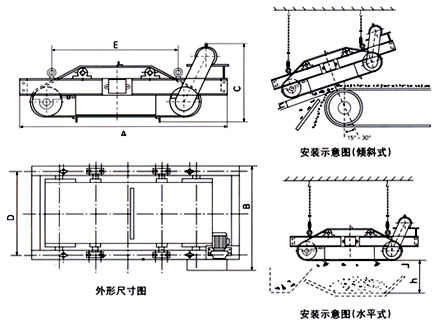

RCDF series oil-cooled self-discharging electromagnetic iron eliminator dimensions and installation schematic diagram:

RCDF series oil cold self-discharging electromagnetic iron removal device

Type < br / > Parameter < br / > project To adapt to the < br / > Bandwidth < br / > mm Rated < br / > Raising < br / > h=mm Material < br / > The thickness of the < br / > ≤mm Excitation < br / > Power < br / > ≤kw Magnetic field < br / > The intensity of < br / > ≥mT Drive < br / > Power < br / > ≤kw To adapt to the < br / > Tape speed < br / > ≤m/s weight
kg 		Overall dimensions mm
A B C D E
RCDF-5 500 150 100 1.2 60 1.2 2.5 1200 1900 900 800 650 1050
RCDF-6 600/650 180 130 1.8 60 1.5 1600 2100 1000 850 700 1170
RCDF-6.5 650 200 150 2.0 70 2.2 1900 2200 1050 900 750 1270
RCDF-8 800 250 200 3.3 70 2.2 2600 2350 1150 970 810 1420
RCDF-10 1000 300 250 4.7 70 3.0 3650 3100 1400 1080 810 1580
RCDF-12 1200 350 300 6.8 70 4.0 4550 3250 1500 1200 940 1780
RCDF-14 1400 400 350 8.9 70 4.0 6390 3500 1945 1300 940 1950
RCDF-16 1600 450 400 13.5 70 5.5 7950 3650 2010 1400 940 2180
RCDF-18 1800 500 450 18 70 5.5 9000 3850 2400 1500 940 2315
RCDF-20 2000 500 500 22 70 5.5 9400 3950 2800 1600 940 2400
