RCDE series oil-cooled electromagnetic iron remover description:
RCDE series oil-cooled electromagnetic iron eliminators are manufactured by our company using foreign advanced technology, it uses internal and external pipeline oil circulation heat dissipation mode. Fully sealed structure, its heat dissipation and performance is better than the domestic similar products, with low continuous working temperature rise, magnetic force, dust, rain, corrosion resistance, long service life and so on. The machine has low failure rate and stable and reliable operation in the harsh environment. It is the preferred iron removal equipment for many users.
Note: If the installation is tilted, please indicate the tilt Angle.

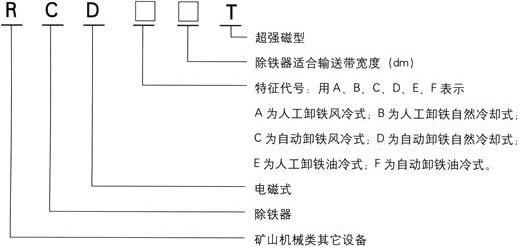

The meaning of electromagnetic iron remover model:

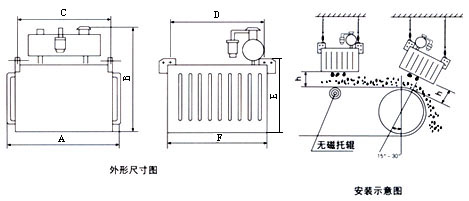

RCDE series oil-cooled electromagnetic iron removers installation schematic:
RCDE series oil cooled suspension type electromagnetic iron remover main technical parameters:
|
Type < br / >
Parameter < br / >
project
|
To adapt to the < br / >
Bandwidth < br / >
mm
|
Rated < br / >
Raising < br / >
h=mm
|
Material < br / >
Thickness < br / >
≤mm
|
Magnetic field < br / >
The intensity of < br / >
≥mT
|
Excitation < br / >
Power < br / >
≤kw
|
To adapt to the < br / >
Tape speed < br / >
≤m/s
|
Work < br / >
standard
|
weight
kg |
Overall dimensions mm
|
|||
|
A
|
B
|
C
|
D.E
|
|||||||||
|
RCDE-4
|
400
|
120
|
70
|
55
|
0.6
|
2.5
|
連續
|
300
|
650
|
400
|
620
|
360
|
|
RCDE-5
|
500
|
150
|
100
|
60
|
1.0
|
500
|
750
|
500
|
730
|
460
|
||
|
RCDE-6
|
600 /650
|
180
|
130
|
60
|
1.5
|
650
|
850
|
600
|
760
|
560
|
||
|
RCDE-6.5
|
650
|
200
|
150
|
70
|
2.0
|
750
|
900
|
650
|
830
|
610
|
||
|
RCDE-8
|
800
|
250
|
200
|
70
|
3.0
|
1150
|
1050
|
800
|
850
|
760
|
||
|
RCDE-10
|
1000
|
300
|
250
|
70
|
4.5
|
1400
|
1350
|
1000
|
950
|
940
|
||
|
RCDE-12
|
1200
|
350
|
300
|
70
|
6.0
|
2780
|
1500
|
1200
|
1050
|
1160
|
||
|
RCDE-14
|
1400
|
400
|
350
|
70
|
8.5
|
4200
|
1800
|
1400
|
1100
|
1360
|
||
|
RCDE-16
|
1600
|
450
|
400
|
70
|
12.5
|
5700
|
2100
|
1600
|
1200
|
1540
|
||
|
RCDE-18
|
1800
|
500
|
450
|
70
|
18
|
7300
|
2260
|
1800
|
1300
|
1740
|
||
|
RCDE-20
|
2000
|
550
|
500
|
70
|
22
|
8500
|
2450
|
2000
|
1400
|
1940
|
||
|
RCDE-22
|
2200
|
600
|
550
|
70
|
27
|
10500
|
2700
|
2200
|
1500
|
2140
|
||
Rcde-t series oil cooled suspension electromagnetic iron removal device has a super magnetic type: T1 magnetic field intensity 90mT T2 120mT T3 150mT.
