RCDC series air cooled self-unloading electromagnetic iron remover description:
RCDC series air cooled electromagnetic iron remover, is in RCDA series air cooled cantilevered hanging electromagnetic iron remover on the basis of increasing the drive motor, drum, with scraper iron tape and other components of iron machinery. Iron handling mechanism in the process of work automatically iron iron belt adsorption of ferromagnetic substances thrown into the iron collecting box in addition to the iron device, without power outage manual cleaning, in addition to the iron automation.
In steel plant, cement plant for slag iron removal and protection of roller press, vertical mill, crusher and other important equipment.

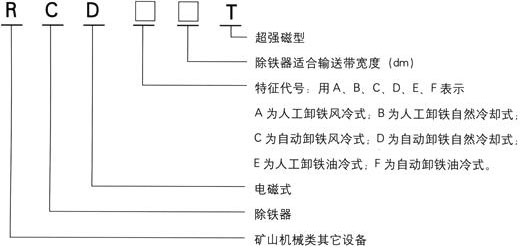

The meaning of electromagnetic iron remover model:

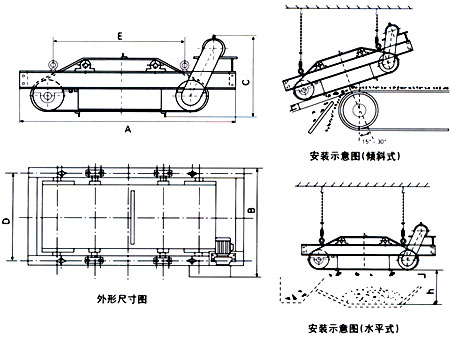

RCDC series air cooled self-unloading electromagnetic iron remover installation schematic:
RCDC series air cooled suspension type electromagnetic iron removers
|
Type < br / >
Parameter < br / >
project
|
To adapt to
bandwidth mm |
Rated < br / >
Raising < br / >
h=mm
|
Material thickness
<=mm
|
The excitation power
<=kw |
Magnetic field intensity
>=mT |
Driving power
<=kw |
To adapt to the belt speed
<=m/s |
weight
kg |
Overall dimensions mm
|
||||
|
A
|
B
|
C
|
D
|
E
|
|||||||||
|
RCDC-5
|
500
|
150
|
100
|
1.2
|
60
|
1.5
|
2.5
|
1080
|
1900
|
965
|
720
|
750
|
1030
|
|
RCDC-6
|
600/650
|
180
|
120
|
2
|
60
|
1.5
|
1350
|
2000
|
1170
|
810
|
800
|
1150
|
|
|
RCDC-6.5
|
650
|
200
|
150
|
3
|
70
|
2.2
|
1550
|
2200
|
1370
|
820
|
888
|
1233
|
|
|
RCDC-8
|
800
|
250
|
200
|
4
|
70
|
2.2
|
2180
|
2500
|
1420
|
860
|
1031
|
1300
|
|
|
RCDC-10
|
1000
|
300
|
250
|
6
|
70
|
3.0
|
3390
|
2700
|
1700
|
880
|
1231
|
1500
|
|
|
RCDC-12
|
1200
|
350
|
300
|
8
|
70
|
3.0
|
4160
|
3000
|
1850
|
950
|
1505
|
1700
|
|
|
RCDC-14
|
1400
|
400
|
350
|
12
|
71
|
4.0
|
5500
|
3500
|
2070
|
1020
|
1674
|
1950
|
|
|
RCDC-16
|
1600
|
450
|
400
|
14
|
71
|
4.0
|
6900
|
3700
|
2270
|
1050
|
1874
|
2400
|
|
|
RCDC-18
|
1800
|
500
|
450
|
20
|
73
|
5.5
|
8900
|
4300
|
2570
|
1160
|
2100
|
2850
|
|
|
RCDC-20
|
2000
|
500
|
500
|
30
|
73
|
5.5
|
10500
|
4600
|
2750
|
1300
|
2200
|
3100
|
|
Note: This machine has super magnetic type: T1 type magnetic field intensity 90mT, T2 type 120mT, T3 type 150mT
